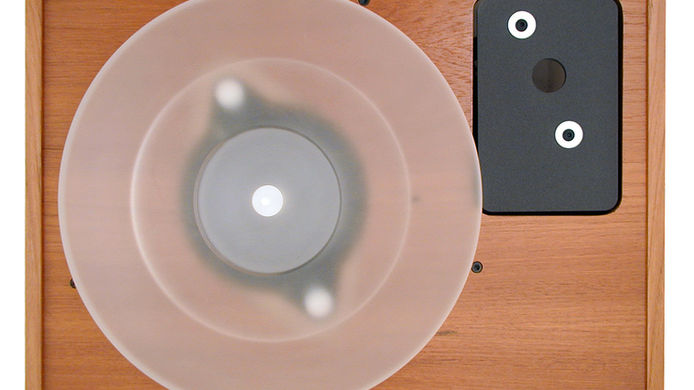

TT-Two Deluxe

Photography by Unknown & Richard Nash

Available finishes



Standard real wood veneers are as follows: - Black Ash / Rosewood / Cherry.



We can also offer satin and high gloss paint finishes, and many of the real wood veneers we use for our loudspeaker cabinets, at extra cost - please contact your local dealer/distributor for more information.

Details

First Principles



Audio Note™ turntables are all designed and built according to a core set of four fundamental insights into what delivers musicality. We have settled on these design principles after many years of experimentation and experience. They can be found on every Audio Note™ turntable from the TT-One right through to the TT Three Reference in which they achieve their ultimate expression.

A suspended chassis attenuates vibration energy from the speakers and the room to deliver purity of reproduction.

A low mass platter absorbs much less energy from the cartridge in the groove of the record without deadening the sound.

A vibration free high torque AC drive system delivers constant platter speed even when the grooves contain strong modulations.

The transmission of vibration in our turntables and arms is managed through the use of materials with different resonances and mass, so that energy is led away from the cartridge, where it does harm to the sound.

Expect even more...

The TT-Two is built to give an even more generous measure of musical enjoyment, particularly when paired with an Audio Note™ arm to create a combination able to punch well above its price point.

It has a high quality aluminium sub-chassis with optimised three-point suspension geometry. Two opposed AC motors deliver twice the torque to the low-mass acrylic platter and also have the benefit of further stabilising the suspension.

The robust and long-life bearing features a sintered and polished shaft in a brass tube with a hardened thrust plate and a precision ground steel ball.

Technical Specifications

MOTOR

POWER SOURCE

POWER CONSUMPTION

SPEEDS

DRIVE SYSTEM

DISTANCE

UNIT DIMENSIONS

NOTE

24 pole precision, high torque motor mounted on an anti-vibration assembly.

240V 50Hz / 110V 60Hz, depending on country

3.3VA

33 & 45 rpm

Precision moulded round section rubber belt

220mm

170mm (h) x 470mm (w) x 360mm (d) , including feet and lid.



Due to Audio Note (UK)'s ongoing research and development program, specifications are subject to change without notice.

Tone Arm sold separately
