OTO-PP
Reviews / Documents
Available finishes
Fascia - Anodised Aluminium or Black Acrylic
(custom colour fascias on request)
Current models
OTO Line PP
OTO Phono PP
Details
The OTO PP Integrated Amplifier is Level 1 Pure Class A Push-Pull design, producing an outstanding level of performance.
Available in Line and Phono versions (with an onboard valve MM RIAA stage).
The OTO PP models have been specifically engineered for sonic performance rather than technical specification, and fulfil all Audio Note (UK) Level 1 criteria: -
Pure Class A Push-Pull Pentode operation Materials and component quality
The output transformers are custom designed and manufactured by Audio Note (UK) and are of extremely high quality, offering outstanding, class-leading performance in today’s world of high performance audio.
Technical Specifications
INPUT IMPEDANCE
INPUT SENSITIVITY
MAXIMUM OUTPUT
CHANNEL BALANCE

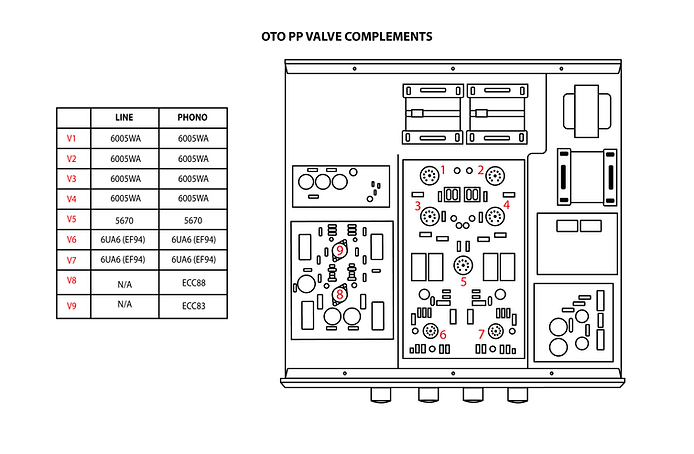

VALVE COMPLEMENT
UNIT WEIGHT
UNIT DIMENSIONS
MAINS INPUT
MAX. POWER CONSUMPTION
NOTE
100K Ohm, Line Level
47K Ohm, Phono input
220mV Line Level
2mV Phono input
9 Watts RMS per channel into 4 or 8 Ohm loads
+/- 0.3dB
1 x 5670
2 x 6AU6
4 x 6005
1 x ECC83 (Phono models only)
1 x 6DJ8 (Phono models only)
17 kg
140mm (h) x 440mm (w) x 410mm (d)
AC 100-120V / 220-240V 50/60Hz
100W
Due to Audio Note (UK)'s ongoing research and development program, specifications are subject to change without notice.
