Jinro

Photography by Unknown

Available finishes

Top Plate - Anodised Aluminium or Black Anodised Aluminium

Details

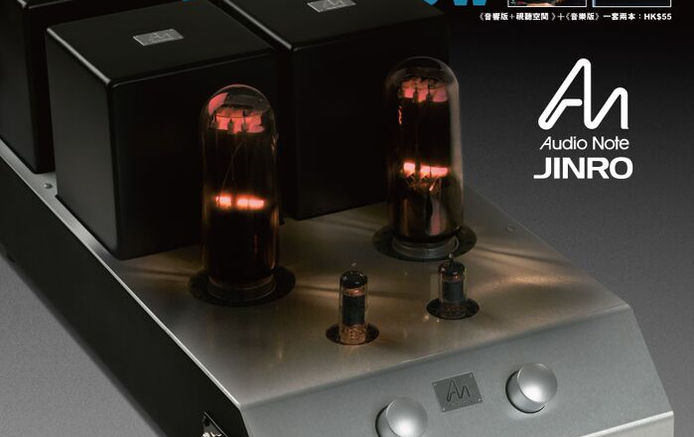

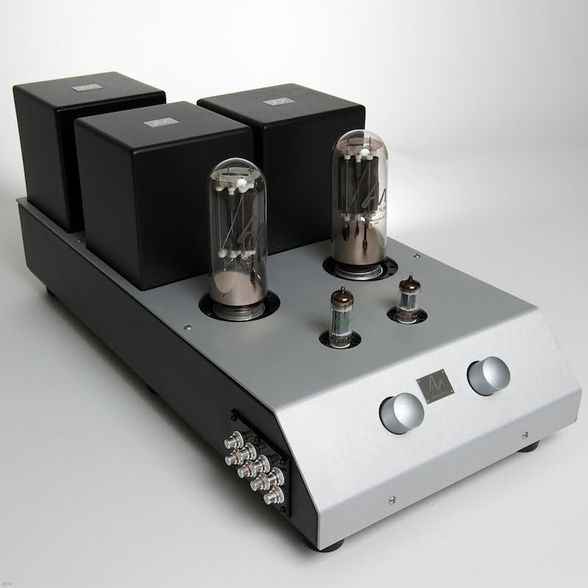

The Audio Note (UK) JINRO Integrated Amplifier iis a Pure Class A Singled Ended valve amplifier that uses the highly regarded 211 triode valve, producing a level of performance that is radically superior to the vast majority of current designs.



It uses the same circuit design and topology as the legendary Audio Note (UK) ONGAKU amplifier. However, where the ONGAKU uses silver wherever possible, such as for all transformer windings, the JINRO instead uses copper.



It has been specifically engineered for sonic performance rather than technical specification, and fulfils all Audio Note (UK) Level 3 criteria: -





Pure Class A operation

Zero Negative Feedback

Single Ended Output Stage

Valve Rectification

Directly Heated Triode operation

Materials and component quality

Technical Specifications

INPUT IMPEDANCE

INPUT SENSITIVITY

MAXIMUM OUTPUT

CHANNEL BALANCE

VALVE COMPLEMENT

UNIT WEIGHT

UNIT DIMENSIONS



MAINS INPUT

MAX. POWER CONSUMPTION

NOTE

100K Ohm, line level

450mV for full output

20 Watts (approx.) per channel into 4 or 8 Ohm loads

+/- 0.3dB

2 x 5R4WGB

2 x 211

1 x ECC82 / 5814a

1 x 7044

38 kg

305mm (h) x 305mm (w) x 640mm (d)

AC 100-120V / 220-240V  50/60Hz

200W



Due to Audio Note (UK)'s ongoing research and development program, specifications are subject to change without notice.
